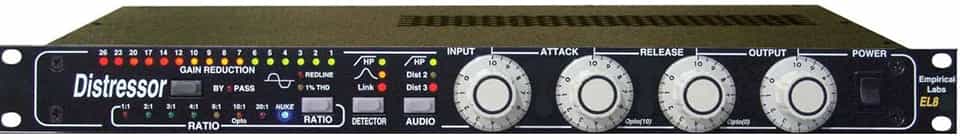

Few pieces of modern studio equipment have achieved the near-universal status of the Empirical Labs Distressor. Introduced in the mid-1990s, this analog compressor bridged the gap between the warmth of vintage circuitry and the precision of modern control, quickly becoming a benchmark in professional audio engineering.
History of the Empirical Labs Distressor
The Empirical Labs Distressor represents one of the most significant developments in analog compressor design. Created by Dave Derr, the unit was conceived to combine the musical tone of classic compressors with the versatility and repeatability of newer technology. Since its release, the Distressor has remained in continuous production, a testament to its enduring relevance in both analog and digital workflows.
What Sparked the Early Development of the Empirical Labs Distressor?
The early 1990s saw a growing need for compressors that could deliver both coloration and control. Dave Derr, an engineer formerly with Eventide, began developing a unit that could emulate the sonic character of vintage gear like the 1176 and LA-2A while adding extended flexibility. After several prototypes and refinements, the Distressor (model EL8) was officially released around 1995–1996, offering engineers an all-in-one solution that could move from transparent leveling to highly saturated compression.
What Design Innovations Made the Distressor Unique?
The Distressor introduced a number of forward-thinking innovations in analog compressor design. It used a proprietary VCA (Voltage Controlled Amplifier) circuit with a wide range of ratios, including 1:1, 2:1, 3:1, 6:1, 10:1, 20:1, and the extreme “Nuke” setting for brick-wall limiting. Users could switch between harmonic distortion modes (Dist 2 and Dist 3) to emulate tube-like or tape-style saturation, allowing for tone shaping beyond simple dynamic control.
Other innovations included side-chain filtering to prevent low frequencies from over-triggering compression, a built-in stereo linking system for dual units, and detector modes that altered the compressor’s response to different frequency bands. These features made the Distressor one of the most flexible compressors ever produced, capable of both surgical precision and creative coloration.
What Were the Key Revisions and Milestones in the Distressor’s Evolution?
Following the original EL8, Empirical Labs introduced the EL8-X version, which added the “British Mode” — an emulation of the 1176’s famous all-buttons-in configuration. This model also introduced the Image Link stereo mode, improving performance on stereo buses and mastering chains. By the 2010s, the Distressor had achieved global recognition as one of the most successful compressors in professional audio history, with over 40,000 units manufactured and still in active use today.
Why Is the Distressor Considered a Modern Classic in Analog Compressor Design?
The Distressor is widely viewed as the link between classic analog engineering and the evolving needs of digital recording. Its adaptability made it indispensable in both tracking and mixing stages, while its harmonic controls allowed engineers to dial in either subtle warmth or pronounced edge. As software emulations began to emerge, the Distressor’s reputation only grew stronger—serving as a standard reference point for modern compressor plugins and hybrid mixing techniques.
Timeline
- 1994: Early prototypes of the Empirical Labs Distressor are developed by Dave Derr.
- 1995–1996: Official release of the Empirical Labs EL8 Distressor.
- Early 2000s: Introduction of the EL8-X version with British Mode and Image Link stereo linking.
- 2016: Inducted into the TECnology Hall of Fame for innovation in audio design.
- 2023: Over 40,000 units in use worldwide, maintaining production nearly three decades after its debut.
Software Emulations
- Empirical Labs Arousor
- IK Multimedia Comprexxor
- Kiive Xtressor
- Slate Digital FG-Stress
- UAD Empirical Labs EL8 Distressor
Tips and Techniques
-
Set input and output to unity before you start
Begin every session by finding unity gain on the Distressor. Use the input and output meters to match levels. This gives you a neutral starting point so subsequent changes (distortion, ratio, HR, etc.) show their real effect rather than level shifts. When using a plugin version, having unity gain presets for various settings is great for workflow!
-
Use the Headroom (on the UAD) knob to stabilize extreme signals
For sources that fluctuate a lot, start with the HR knob at its middle position. If the input is very soft, increase HR to prevent the compressor from grabbing too eagerly; if the input is very hot, reduce HR to keep the detector from flattening dynamics. For creative overload, push HR further to make the UAD Distressor respond more aggressively — adjust input gain afterward to maintain unity.
-
When you want distortion without obvious compression, try 1:1 ratio
Set ratio to 1:1, drive the input until the distortion (AUDIO/Dist) LEDs engage, then use output to return to unity. This produces harmonic effect from the Distressor’s distortion circuits while introducing only the minimal compression produced by the driving the distortion. Use this to add character while preserving dynamic peaks.
-
Tune distortion (AUDIO/Dist) after setting compressor parameters
Configure attack, release, and ratio first, then bring in the Dist/AUDIO control. Increase a little, listen, then re-check gain staging. Because the distortion stage slightly affects detector behavior, iterate between distortion level and input gain until the gain reduction and harmonic content are where you want them.
-
Use the detector high-pass (HP) to keep lows from over-triggering compression
Engage the detector HP and sweep its corner frequency while the track plays. Stop when low-frequency events stop causing excessive gain reduction. This is especially useful on bass-heavy mixes and kick-heavy sources; it keeps the Distressor responding to program material rather than being dominated by sub-bass.
-
Use the band emphasis to tame digital harshness in the detector
You can control digital harshness (sibilance, high-mid spikes), by switching the sidechain (SC) mode to Band Emphasis. The makes the detector “hear” and respond to those hi-mids.
-
Serial compression for transparent control plus character
Place one Distressor at low ratio and conservative attack/release for program-level control (2:1, medium attack). Follow it with a second Distressor set for character (higher ratio, faster attack, distortion engaged). This splits duties: the first smooths peaks, the second brings color and further control without extreme gain reduction on either unit. (This is easier and cheaper to do with plugins -!)
-
Nuke mode and limiting
Use Nuke for aggressive limiting: set input to push gain reduction into double-digit dB, use fast attack and medium-fast release, then back off output to regain level. For a less obvious effect, run Nuke in parallel and blend; for full-limiting duties, follow Nuke with an output limiter to catch overs.
-
Practical chain example: vocal presence without pumping
Insert Distressor pre-EQ. Set ratio to 3:1, attack medium-slow (to let transients through), release medium. Engage detector HP to filter below 100 Hz. Add mild distortion (low Dist/AUDIO) and match output to unity. If you need more control, add a second Distressor after de-essing to catch stubborn peaks with faster attack and higher ratio, then re-match output levels.
-
Tips from the source
Check out page 3 of the EL Distressor manual for their own recommended example settings!
